產品介紹

Temperature measurement range :

-20℃ to +350℃

Accuracy :

±2℃ or 2％

Field of View :

23o×17o

Spatial resolution (IFOV) :

2.5 mRad

Minimum focus distance :

Thermal lens：15cm
Visible light lens：46cm

Image frequency :

9 Hz refresh rate

Detector type :

160 × 120 focal plane array

Infrared lens type :

20 mmF=0.8 lens

Thermal sensitivity (NETD) :

≦0.1℃ at 30℃

Visual camera :

640 × 480 resolution

Voice annotation :

60 seconds maximum recording time

IP rating :

IP54

可見光圖

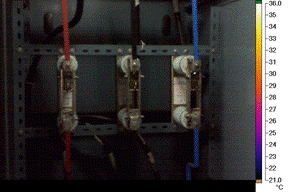

紅外線圖
