產品介紹

儀器功能：

1.Combination tool uses both RFI and acoustic technology.

2.Registers RFI from apparatus with insulation problems including PD and arcing.

3.Locate and diagnose internal problems using the acoustic sensor on grounded surfaces.

4.Easy to use, handheld device with large display screen

  ACOUSTIC EMISSION CHANNEL

    AE Operating Frequency：10 kHz to 500 kHz at -3dB points

    AE Sensor：R3α (standard),R6α, R6I, R15α R15I (optional)

  UHF CHANNEL

    Bandwidth：50-1000 MHz with 6 MHz RBW

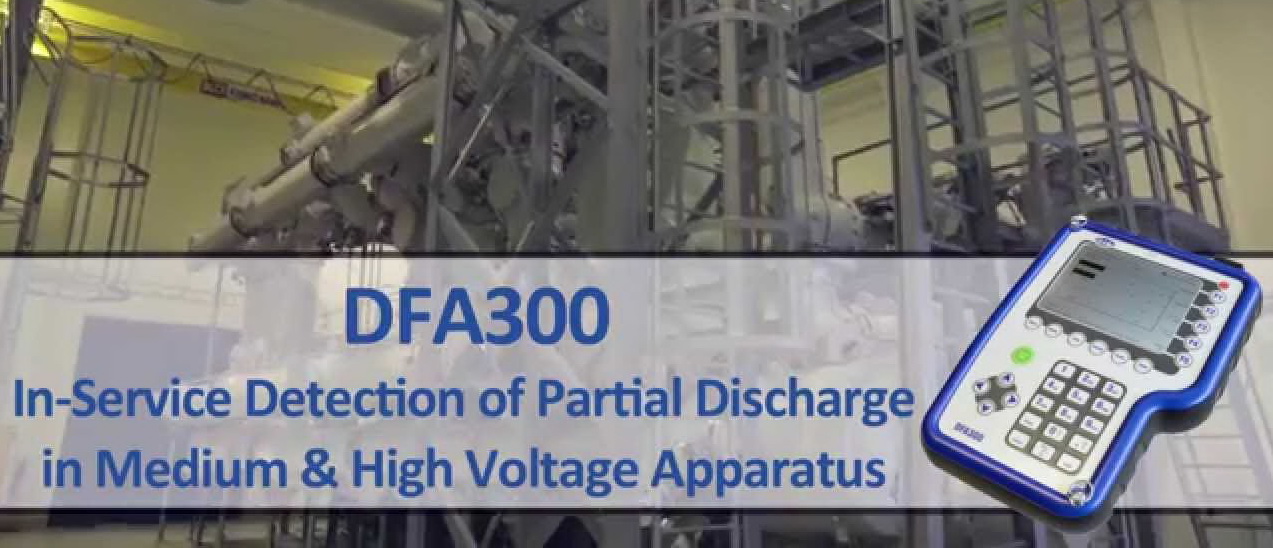

數位部分放電檢測儀RFI & Acoustic Signal Surveyor

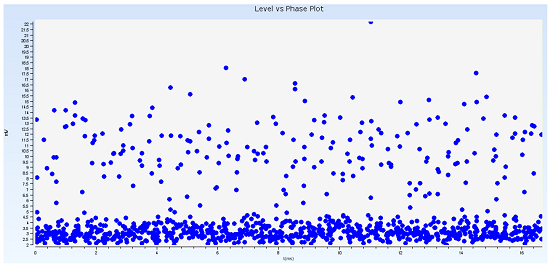

測試畫面

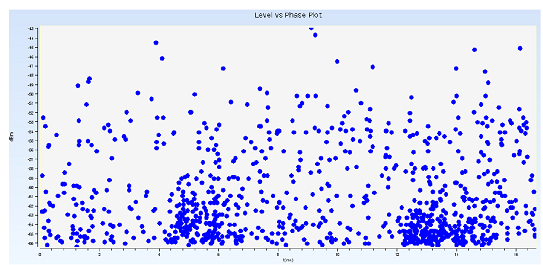

測試畫面

測試畫面
